Q-Switched DPSS Lasers
- All fiber based Ultra Short Pulses Laser Source
- Stable Mode locked Master Oscillator

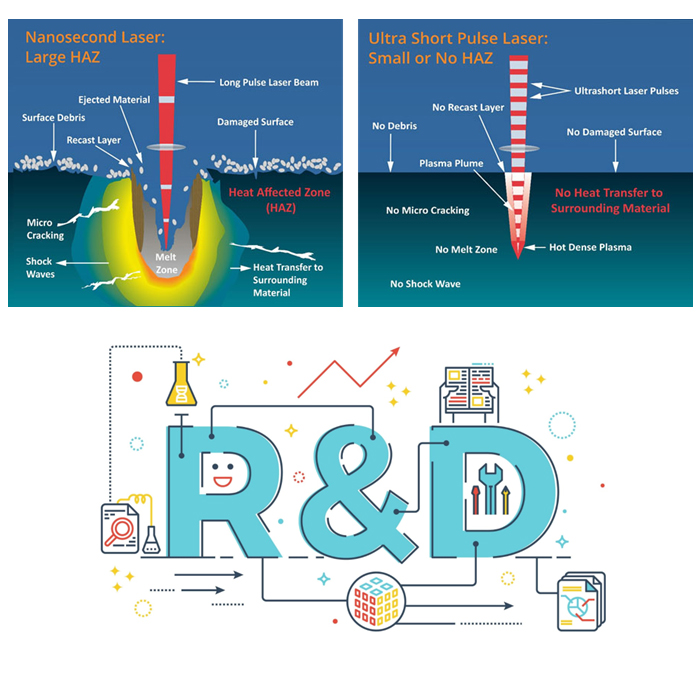

- < 10ps Ultra Short Pulse Width Laser
- Variable pulse picker – Pulse on demand available
Laser Key Specification
| Technical Data | Industrial DPSS Laser / Solid-State, End Pumped Laser | ||
|---|---|---|---|
| Model | FPL-MO001T | FPL-SS010T | FPL-SG005T |
| System Specifications | |||
| Wavelength [nm] | 1,030 | 1,030 | 515 |
| Average power [W] | 50mW @ 50MHz | 10W @ 1MHz | 5W @ 1MHz |
| Repetition rate range [kHz] | Single Shot ~ 2 MHz | ||
| Pulse width [ps] | < 10ps | < 10ps | < 10ps |
| Spatial mode | TEM00 | ||
| M2 | < 1.2 | < 1.2 | < 1.5 |
| Long term stability(>8Hr) [%] | < 1 | ||
| Pulse to pulse stability [% rms] | < 3 | < 5 | |
| Polarization | Linear | Linear | Linear |
| Warranty | 12 Month | 12 Month | 12 Month |
| Environmental Specifications | |||
| Operating Conditions | |||
| Warm up time [min] | < 5 | < 5 | < 20 |
| Temperature [℃] | 15 ~ 35 | ||
| Humidity [%] | 10 ~ 90 | ||
| Cooling | Closed Loop Water Cool (Forced Air Cool – Option) | ||
| Non-Operating Conditions | |||
| Temperature [℃] | 5 ~ 45 | ||
| Humidity [%] | 10 ~ 80 | ||
| Controller Specifications | |||
| External control | RS-232 Interface, TTL | ||
