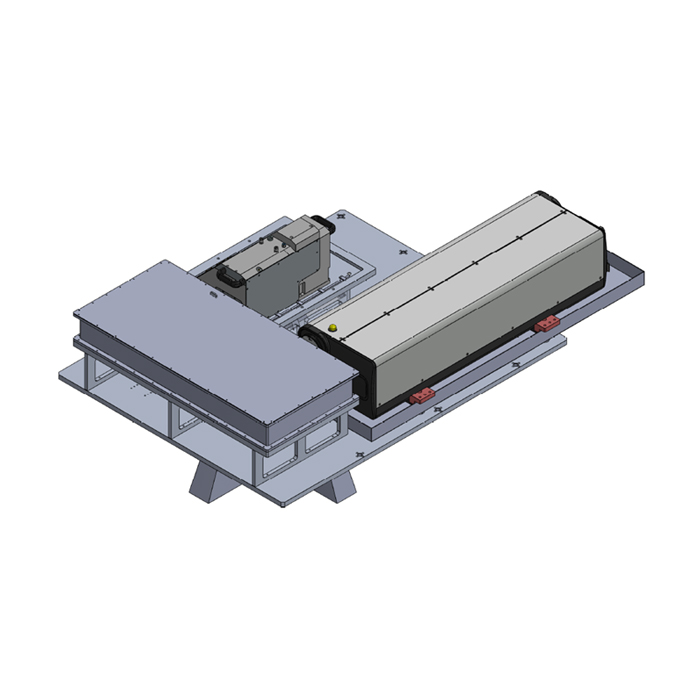

High-speed cutting system of secondary battery separator using CO2 laser(with roll to roll logistics)
- A machine that cuts high-speed moving battery materials with a laser
- more than 15,000mm/s cutting speeds available
Machine Key Specification
| Material | Substrate | Secondary Battery Separator |
|---|---|---|
| Std. Substrate Size | Width 600mm(Movement method : Roll to Roll) | |
| Laser | Wavelength [um] | 9.3 |
| Average power [W] | 400 | |
| Repetition rate range [kHz] | 0 ~ 100 | |
| Pulse width [us] | 2 ~ 400 | |
| Polarization | Linear | |
| Scanner | Wavelength [um] | 9.4 |
| Entrance aperture[mm] | 16 | |
| Interface | SL2-100 | |
| Water cooling | 3 l/min, p < 4.5 bar | |
| Weight | 35 kg | |
| Tracking error | < 0,45 ms | |
| Typical positioning speed | 20 rad/s | |
| Controller board | Scanlab RTC Control boards |
※ The above specification is changed at the request of the customer.
