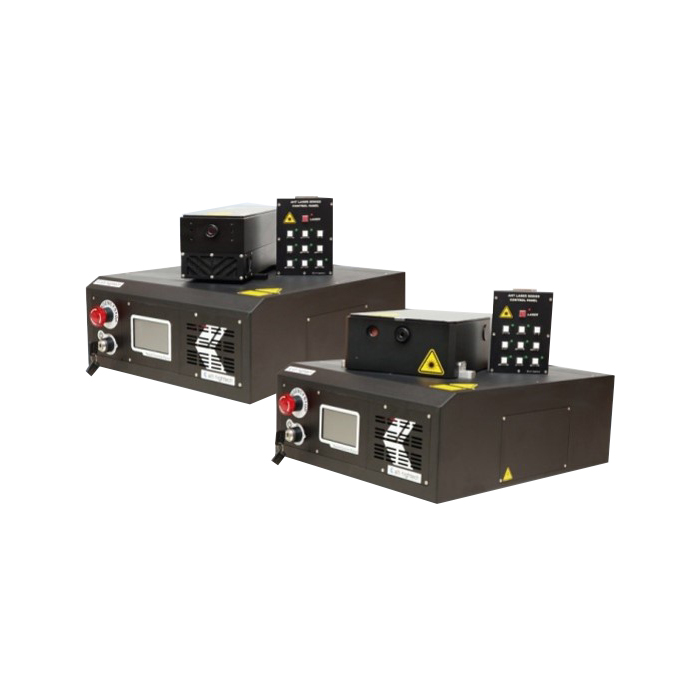

Q-Switched DPSS Lasers
- TEM00 mode for most industrial needs such as precision marking and micromachining
- IR/GR/UV Wavlength Products → Capable of responding to various output wavelengths
- Sealed structure and downsizing design
- S/W remote control → Laser Status Monitoring
- 24/7 operation possible by securing Long Term stability
Laser Key Specification
| Technical Data | Industrial DPSS Laser / Solid-State, End Pumped Laser | ||
|---|---|---|---|
| Model | EPL-SS020T | EPL-SG005T | SPL-SU002T |
| System Specifications | |||
| Wavelength [nm] | 1,064 | 532 | 355 |
| Average power [W] | 20 @ 30kHz | 5 @ 30kHz | 2 @ 30kHz |
| Repetition rate range [kHz] | Single Shot ~ 100 kHz | ||
| Pulse width [ns] | < 20 @ 30kHz | < 17 @ 30kHz | < 15 @ 30kHz |
| Spatial mode | TEM00 | ||
| M2 | < 1.2 | < 1.5 | < 1.5 |
| Energy per pulse [uJ] | 650 @ 30kHz | 160 @ 30kHz | 65 @ 30kHz |
| Long term stability(>8Hr) [%] | < 1 | < 1 | < 1 |
| Pulse to pulse stability [% rms] | < 5 | < 5 | < 5 |
| Polarization | Linear | Linear | Linear |
| Warranty | 12 Month | 12 Month | 12 Month |
| Environmental Specifications | |||
| Operating Conditions | |||
| Warm up time [min] | < 5 | < 15 | < 20 |
| Temperature [℃] | 15 ~ 35 | ||
| Humidity [%] | 10 ~ 90 | ||
| Cooling | Forced Air Cool (Water Cool Option) | ||
| Non-Operating Conditions | |||
| Temperature [℃] | 5 ~ 45 | ||
| Humidity [%] | 10 ~ 80 | ||
| Controller Specifications | |||
| External control | RS-232 Interface, TTL | ||
