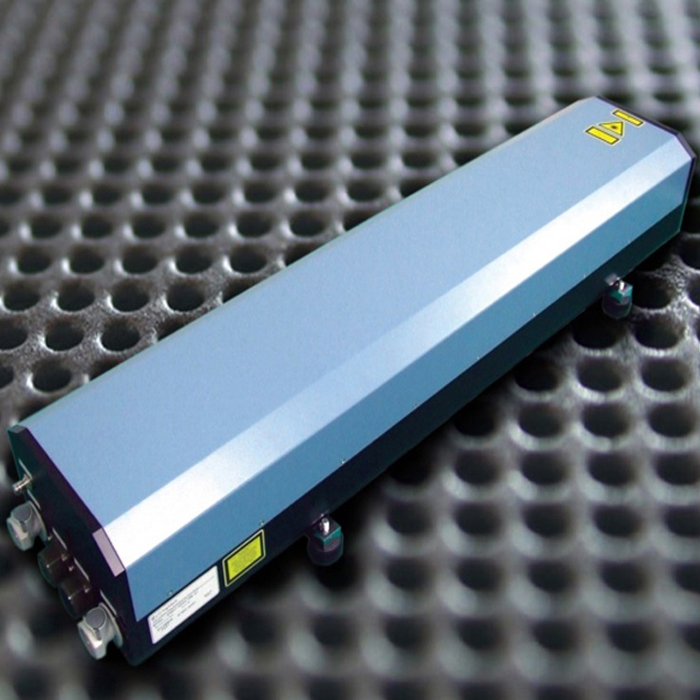

Q-Switched DPSS Lasers
- High Pulse Energy → Capable of responding to high power laser applications
- Adjustment function such as Beam Mode and Pulse Energy that can be optimized for application
- IR/GR/UV Wavlength Products → Capable of responding to various output wavelengths
- S/W remote control → Laser Status Monitoring
- 24/7 operation possible by securing Long Term stability
Laser(IR) Key Specification
| Technical Data | Industrial DPSS Laser / Solid-State, Side Pumped Laser | ||
|---|---|---|---|
| Model | SPL-SS060x-01 | SPL-SS100x-01 | SPL-SS200M-01 |
| System Specifications | |||
| Wavelength [nm] | 1,064 | 1,064 | 1,064 |
| Average power [W] | 60 @ 10kHz | 100 @ 10kHz | 200 @ 10kHz |
| Repetition rate range [kHz] | Single Shot ~ 50 kHz | ||
| Pulse width [ns] | < 200 @ 10kHz | < 200 @ 10kHz | < 200 @ 10kHz |
| Spatial mode | TEM00 ~ MM | TEM00 ~ MM | MM |
| M2 | 1.1 ~ 15 | 1.1 ~ 15 | ~ 25 |
| Energy per pulse [mJ] | 6 @ 10kHz | 10 @ 10kHz | 20 @ 10kHz |
| Long term stability(>8Hr)[% ] | < 1 | < 1 | < 1 |
| P to p stability [% rms] | < 5 | < 5 | < 5 |
| Polarization | Random | Random | Random |
| Warranty | 12 Month | 12 Month | 12 Month |
| Environmental Specifications | |||
| Operating Conditions | |||
| Warm up time [min] | < 10 | < 10 | < 10 |
| Temperature [℃] | 15 ~ 35 | 15 ~ 35 | 15 ~ 35 |
| Humidity [%] | 10 ~ 90 | 10 ~ 90 | 10 ~ 90 |
| Cooling | Closed Loop Water Cooling | ||
| Non-Operating Conditions | |||
| Temperature [℃] | 5 ~ 50 | 5 ~ 50 | 5 ~ 50 |
| Humidity [%] | 10 ~ 90 | 10 ~ 90 | 10 ~ 90 |
| Controller Specifications | |||
| External control | RS-232 Interface, TTL | ||
| Voltage | 220VAC 60Hz | ||
| Power consumption max. | 2.2kW(3.806kW with chiller) | ||
Green Laser Key Specification
| Technical Data | Industrial DPSS Laser / Solid-State, Side Pumped Laser | ||
|---|---|---|---|
| Model | SPL-SG030x-01 | SPL-SG050x-01 | SPL-SG100M-01 |
| System Specifications | |||
| Wavelength [nm] | 532 | 532 | 532 |
| Average power [W] | 30 @ 10kHz | 50 @ 10kHz | 100 @ 10kHz |
| Repetition rate range [kHz] | Single Shot ~ 50 kHz | ||
| Pulse width [ns] | < 200 @ 10kHz | < 200 @ 10kHz | < 200 @ 10kHz |
| Spatial mode | Low Order Mode ~ MM | Low Order Mode ~ MM | MM |
| M2 | 5 ~ 10 | 5 ~ 10 | ~ 15 |
| Energy per pulse [mJ] | 3 @ 10kHz | 5 @ 10kHz | 10 @ 10kHz |
| Long term stability(>8Hrs) [% rms] | < 1 | < 1 | < 1 |
| Pulse to pulse stability [% rms] | < 5 | < 5 | < 5 |
| Polarization | Linear | Linear | Linear |
| Warranty | 12 Month | 12 Month | 12 Month |
| Environmental Specifications | |||
| Operating Conditions | |||
| Warm up time [min] | < 20 | < 20 | < 20 |
| Temperature [℃] | 15 ~ 35 | 15 ~ 35 | 15 ~ 35 |
| Humidity [%] | 10 ~ 90 | 10 ~ 90 | 10 ~ 90 |
| Cooling | Closed Loop Water Cooling | ||
| Non-Operating Conditions | |||
| Temperature [℃] | 5 ~ 50 | 5 ~ 50 | 5 ~ 50 |
| Humidity [%] | 10 ~ 90 | 10 ~ 90 | 10 ~ 90 |
| Controller Specifications | |||
| External control | RS-232 Interface, TTL | ||
| Voltage | 220VAC 60Hz | ||
| Power consumption max. | 2.2kW(3.806kW with chiller) | ||
